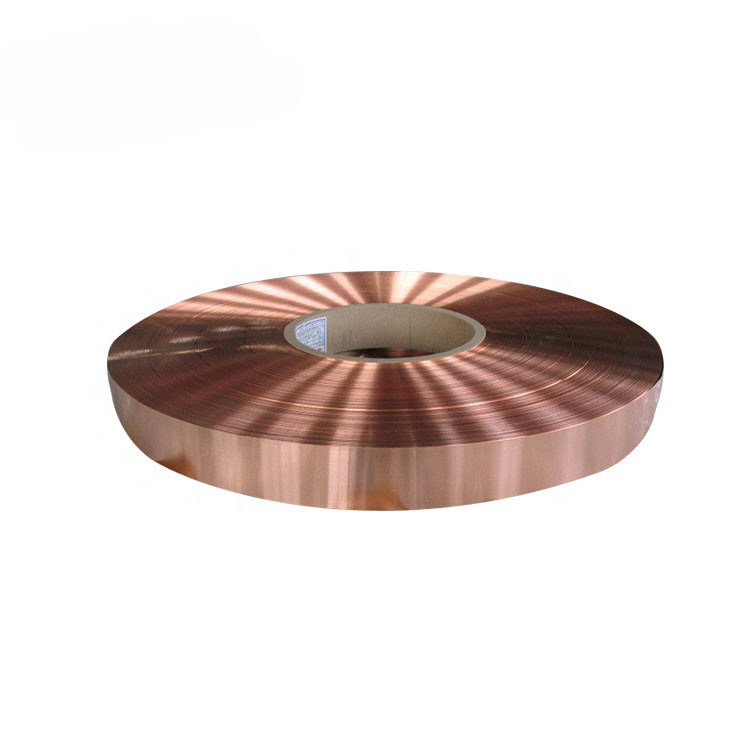

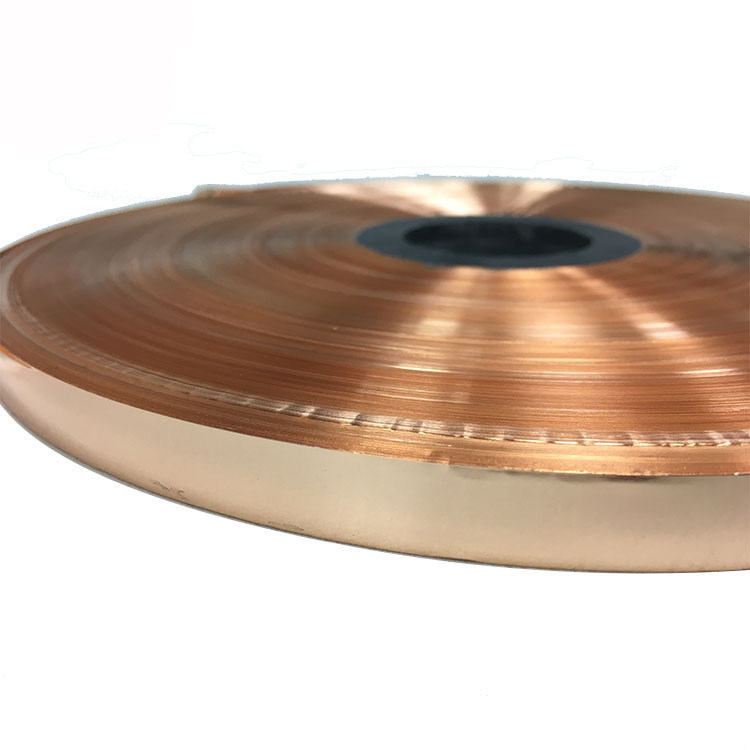

Độ dẻo EMI che chắn cán đồng nguyên chất RA
Lá đồng C11000 RA
,Lá đồng 100um RA
,Lá đồng 50um RA
Mô tả sản phẩm
Ứng dụng
Lá đồng cuộn có sức mạnh phi thường, khả năng uốn cong, độ dẻo và bề mặt bóng, cộng với khả năng cơ học tuyệt vời của nó, làm cho nó không thể thay thế làm nguyên liệu thô.Đặc biệt khi được sử dụng cho máy biến áp, Đầu nối linh hoạt đồng, CCL, FCCL, PCB, Phim địa nhiệt, Xây dựng, Trang trí, v.v.
| Độ dày | Sức căng | Kéo dài | Temper | IACS |
| μm | kgf / mm2 | % | HV | % |
| 18 ± 5 | ≥8 | ≥4 | 55-65 | ≥98,3 |
| 22 ± 5 | ≥10 | ≥4 | 55-65 | ≥98,3 |
| 25 ± 5 | ≥10 | ≥5 | 55-65 | ≥98,3 |
| 35 ± 5 | ≥15 | ≥8 | 55-65 | ≥98,3 |
| 50 ± 5 | ≥15 | ≥10 | 55-65 | ≥98,3 |
| 100 ± 5 | ≥20 | ≥20 | 55-65 | ≥98,3 |
Một mặt đỏ dày 12um đồng lá cuộn
Single Side Red Thickness 12um Copper Foil Rolls Quickly details . Low profile and Single side side treatment in red. . Thickness: 12um . Width: ≤520 mm . Length: ≤5000 M . ID: 76 mm,152 mm . Alloy: C11000 Features: 1. Red color 2. Good performance in resistant to bending suitable for FCCL. 3. High density performance leads to high flexibility Application: Suitable for FCCL, FPC, COVERLAY, BONDING FILM TDS for FPC FCCL with all thickness. Thickness 0.10/0.012/0.018/0.025/0
C1100 C1020 C1220 Máy biến áp dải mỏng
C1100 C1020 C1220 Transformer Strip Thin Copper Foil Product Details 1. Grade:C1100,C1020,C1220 2. Thickness:0.005-1.2mm 3. Width:400mm max 4. Chemincal composition: C1100:Cu≥99.9%;C1020:Cu≥99.96%;C1220:Cu≥99.97% P:0.015-0.04% 5. Oxgen content:C1100:O80% Applications 1. Electric and electric springs switches 2. Lead frames 3. Connectors and oscillation reeds 4. PCB field 5. Communication cable 6. Cable armoring 7. Mobile phone main board 8. Ion battery production lamination
99,9% độ tinh khiết của lá đồng mạ điện đỏ
99.9% Purity Red Rolled Electrodeposited Copper Foil Description: Electrolytic copper foil is a foil-based form of copper with a thickness generally less than 80micron. A rolled foil is made by annealing and rolling the electrolytic copper uninterruptedly.The production process involves electrodepositing copper to a rolling drum and then again rolling it up. For the process of electrodeposition, high-grade copper is dissolved in acid to form a copper electrolyte. This copper
Cao Peel Sức mạnh Chiều rộng 520mm C11000 Lá đồng cách nhiệt
High Peel Strength Width 520mm C11000 Insulated Copper Foil Quickly details Thickness: 0.012-0.070 mm Width: 5-520 mm Length: 500-5000 M ID: 76 mm,152 mm Alloy: T2,C11000,C1100,C101,E-Cu58 Temper: H Features: 1. the treated foil in gray or red 2. High peel strength 3. Good etch ability 4. Excellent adhesion to etching resist Application: 1. Phenolic resin board 2. Epoxy board Compare between CA copper foil and ED copper foil 1. Process: rolled copper foil (Rolling process),ED
